Mathematics Chap. 6 Lines and Angles Unit Test Papers class 9 english Medium
This unit test papers are specially prepare for weekly test for students by teachers and tutors to test them how their students perform during this week. Mathematics Chap. 6 Lines and Angles Unit Test Papers class 9 english Medium are used by thousands of teachers and tutors and other state boards students test while students use it for self testing or find out important questions.
Mathematics Chap. 6 Lines and Angles Unit Test Papers class 9 english Medium
Select Chapter Mathematics english Medium
Unit Test Paper
Chap. 6 Lines and Angles ⇒ यूनिट - I टेस्ट
Mathematics
Timing:1Hour यूनिट - I टेस्ट T.M:20
ATP Model Unit Test Paper
Class -IX
Sub-Mathematics (Chap-6.1)
Timming: 1 hour unit-I T.M -20
All questions are compulsory.

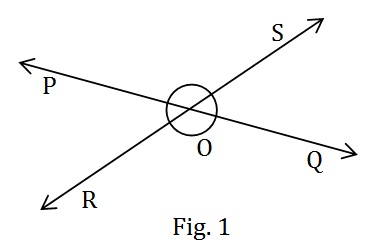

Q1. In Fig. 1, lines PQ and RS intersect each other at point O. 2 Marks
If ∠ POR : ∠ ROQ = 4 : 5, find all the angles.
Q2. Find the value of x. (see fig. 2) 3 Marks
Q3. In Fig. 3, ∠ PQR = ∠PRQ, then prove that ∠PQS = ∠PRT. 3 Marks
Q4. In fig. 4, Lines XY and MN intersect each other at the point O. 4 Marks
If ∠POY = 90˚ and a : b = 2 : 3, Find C.
Q5. Prove that if two lines intersect each other, then the vertically opposite angles are equal.
4 Marks
Q6. In given Fig. 5, POQ is a line. Ray OR is perpendicular 4 Marks
to line PQ. OS is another ray lying between rays
OP and OR. Prove that
∠ROS = ½ (∠QOS – ∠POS).
Unit Test Paper
Chap. 6 Lines and Angles ⇒ यूनिट - II टेस्ट
Mathematics
Timing:1Hour यूनिट - II टेस्ट T.M:20
ATP Model Unit-Test
(Mathematics - IX)
Chap-6
Timing: 1 hour M.M-20
2 marks questions;
Q1. If an isosceles has an angle of 70o, then find its equal angles.
यदि एक समद्विबाहु त्रिभुज के एक कोण 70o है तो दो बराबर कोणों का माप ज्ञात कीजिये |
Q2. fig. 1, find the values of x and y and then show that AB || CD.
आकृति 1, x तथा y का मान ज्ञात कीजिये और तब दर्शाइए कि AB || CD.
Q3. Find the value of x from the given fig.
दी गयी आकृति से x का मान ज्ञात कीजिए |
3 marks question.
Q4. In fig. 4, Lines XY and MN intersect each other at the point O.
If ∠POY = 90˚ and a : b = 2 : 3, Find C.
आकृति 4 में रेखाएं XY तथा MN एक दुसरे को बिंदु O पर प्रतिच्छेद करती है|
यदि ∠POY = 90˚ और a : b = 2 : 3, है तो C ज्ञात कीजिए |
Q5. see fig. 7, if PQ ⊥ PS, PQ || SR, ∠ SQR = 28° and ∠ QRT = 65°,
then find the values of x and y.
देखिये आकृति 7, यदि PQ ⊥ PS, PQ || SR, ∠ SQR = 28° और ∠ QRT = 65° हैं तो x और y का मान ज्ञात कीजिये |
4 marks question.
Q6. Prove that If a transversal intersects two parallel lines, then each pair of
interior alternate angles is equal.
सिद्ध कीजिए कि यदि दो समांतर रेखाओं को कोई तिर्यक रेखा प्रतिच्छेद करती है तो एकांतर कोणों का प्रत्येक युग्म बराबर होता है |
Q7. In Fig. the sides AB and AC of ΔABC are produced To point E and D
respectively. If bisectors BO and CO of ∠CBE and ∠BCD respectively meet at point O, then prove that
∠BOC = 90˚ - ½ ∠BAC
आकृति में, ΔABC के भुजाएँ AB तथा AC को क्रमश: बिंदु E तथा D तक बढाया
गया है | यदि ∠CBE और ∠BCD के कोण समद्विभाजकक्रमश: BO तथा CO
बिंदु O पर मिलते है | तो सिद्ध कीजिये कि ∠BOC = 90˚ - ½ ∠BAC है |
Unit Test Paper
Chap. 6 Lines and Angles ⇒ यूनिट - III टेस्ट
Mathematics
Timing:1Hour यूनिट - III टेस्ट T.M:20
ATP Model Unit-Test
(Mathematics - IX)
Chap-6
Timing: 1 hour M.M-20
3 marks questions;

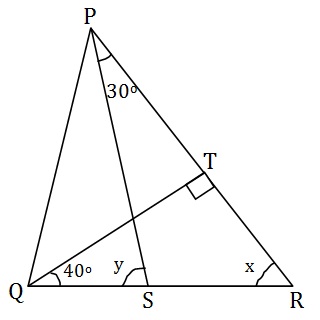

Q1. if QT ⊥ PR, ∠ TQR = 40° and ∠ SPR = 30°, find x and y.
यदि QT ⊥ PR, ∠ TQR = 40° और ∠ SPR = 30°है तो x और y ज्ञात कीजिये |
(fig. 2)
Q2. if AB || DE, ∠ BAC = 35° and ∠ CDE = 53°, find ∠ DCE.
यदि AB || DE, ∠ BAC = 35° और ∠ CDE = 53° है तो ∠ DCE ज्ञात कीजिये |

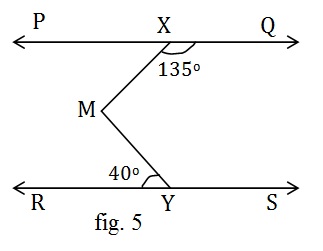

Q3. if PQ || RS, ∠ MXQ = 135° and ∠ MYR = 40°, find ∠ XMY. (see fig. )
यदि PQ || RS, ∠ MXQ = 135° तथा ∠ MYR = 40° है तो
∠ XMY ज्ञात कीजिये | (देखिये आकृति )

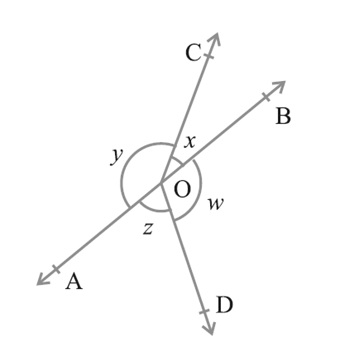

Q4. if x + y = w + z, then prove that AOB is a line.
यदि x + y = w + z है तो सिद्ध कीजिये कि AOB एक रेखा है |
4 marks questions;
Q5. see fig. 7, if PQ ⊥ PS, PQ || SR, ∠ SQR = 28° and ∠ QRT = 65°,
then find the values of x and y.
देखिये आकृति 7, यदि PQ ⊥ PS, PQ || SR, ∠ SQR = 28° और ∠ QRT = 65° हैं तो x और y का मान ज्ञात कीजिये |
Q6. Prove that the sum of the angles of a triangle is 180º.
सिद्ध कीजिये कि किसी त्रिभुज के कोणों का योग 180º होता है |
Unit Test Paper
Chap. 6 Lines and Angles ⇒ Unit test - IV
Mathematics
Timing:1Hour Unit test - IVT.M:20
ATP Unit Test
(Mathematics – IX)
Chapter-6
Timing: 1 Hour Maximum Marks: 20
2 Marks Questions:
Q1. Find the Value of x from given fig.
दी गई आकृति से x का मान ज्ञात कीजिये |
3 Marks Questions.

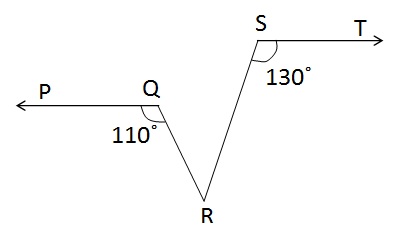

Q2. In given fig. If PQ || ST, ∠PQR = 110˚ ∠RST = 130˚. Find ∠QRS.
दी गई आकृति में, यदि PQ || ST, ∠PQR = 110˚ ∠RST = 130˚ है
तो ∠QRS ज्ञात कीजिये |
Q3. In given Fig. AB || CD and CD || EF. Also EA ⊥ AB. If ∠BEF = 55°,
find the values of x, y and z.
दी गई आकृति में, AB || CD तथा CD || EF है और EA ⊥ AB भी है | यदि
∠BEF = 55° है तो x, y तथा z का मान ज्ञात कीजिये |
4 Marks Questions:
Q4. Prove that if the side of a triangle is produced then the exterior angle
so forms is equal to sum of the two interior opposite angles.
सिद्ध कीजिये कि बहिष्कोंण दोनों अंत: अभिमुख कोणों के योग के बराबर होता है |
Or (अथवा)
Prove that if a transversal intersects two parallel lines, then each pair of
alternate interior angles is equal.
सिद्ध कीजिये कि यदि दो समांतर रेखाओं को कोई तिर्यक रेखा प्रतिच्छेद करे तो एकांतर
कोणों का प्रत्येक युग्म बराबर होता है |
Q5. In Fig. the sides AB and AC of ΔABC are produced To point E and D
respectively. If bisectors BO and CO of ∠CBE and ∠BCD respectively meet at point O, then prove that
∠BOC = 90˚ - ½ ∠BAC
आकृति में, ΔABC के भुजाएँ AB तथा AC को क्रमश: बिंदु E तथा D तक बढाया
गया है | यदि ∠CBE और ∠BCD के कोण समद्विभाजकक्रमश: BO तथा CO
बिंदु O पर मिलते है | तो सिद्ध कीजिये कि ∠BOC = 90˚ - ½ ∠BAC है |

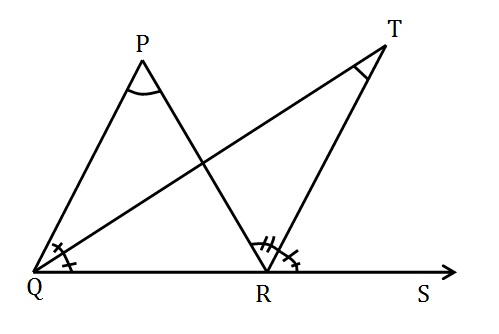

Q6. In Fig. The side QR of ΔPQR is produced to a point S. If the bisectors of
∠PQR and ∠PRS meet at point T , then prove that ∠QTR = ½ ∠QRP.
आकृति में, ΔPQR की भुजा QR को बिंदु S तक बढाया गया है | यदि कोण
∠PQR और ∠PRS के कोण समद्विभाजक बिंदु T पर मिलते है, तो सिद्ध कीजिये
कि ∠QTR = ½ ∠QRP है |
Unit Test Paper
Chap. 6 Lines and Angles ⇒ यूनिट - V टेस्ट
Mathematics
Timing:1Hour यूनिट - V टेस्ट T.M:20
ATP Model Unit-Test
(Mathematics - IX)
Chap-6
Timing: 1 hour M.M-20
2 marks questions;

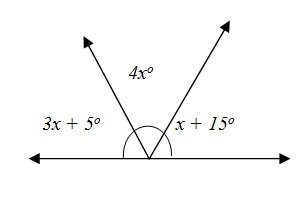

Q1. Find the value of x.
x का मान ज्ञात कीजिये |
Q2. if x + y = w + z, then prove that AOB is a line.
यदि x + y = w + z है तो सिद्ध कीजिये कि AOB एक रेखा है |
Q3. if PQ || RS, ∠ MXQ = 135° and ∠ MYR = 40°, find ∠ XMY. (see fig. )
यदि PQ || RS, ∠ MXQ = 135° तथा ∠ MYR = 40° है तो
∠ XMY ज्ञात कीजिये | (देखिये आकृति )
3 marks questions;
Q4. Q2. In given fig. If PQ || ST, ∠PQR = 110˚ ∠RST = 130˚. Find ∠QRS.
दी गई आकृति में, यदि PQ || ST, ∠PQR = 110˚ ∠RST = 130˚ है
तो ∠QRS ज्ञात कीजिये |
Q5. In given Fig. AB || CD and CD || EF. Also EA ⊥ AB. If ∠BEF = 55°,
find the values of x, y and z.
दी गई आकृति में, AB || CD तथा CD || EF है और EA ⊥ AB भी है | यदि
∠BEF = 55° है तो x, y तथा z का मान ज्ञात कीजिये |
4 marks questions;
Q5. see fig. 7, if PQ ⊥ PS, PQ || SR, ∠ SQR = 28° and ∠ QRT = 65°,
then find the values of x and y.
देखिये आकृति 7, यदि PQ ⊥ PS, PQ || SR, ∠ SQR = 28° और ∠ QRT = 65° हैं तो x और y का मान ज्ञात कीजिये |
Q6. Prove that the sum of the angles of a triangle is 180º.
सिद्ध कीजिये कि किसी त्रिभुज के कोणों का योग 180º होता है |
